     Brick sorter 3: Final assembly


Step 01

Sub-assembly



Sorter base

1

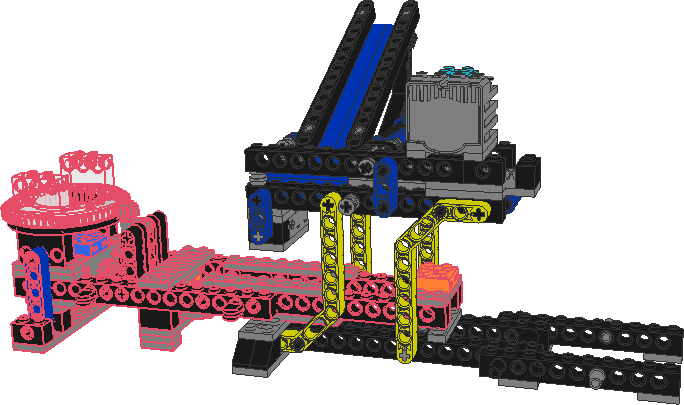

Step 02

Sub-assembly



Sorter rotor base

1

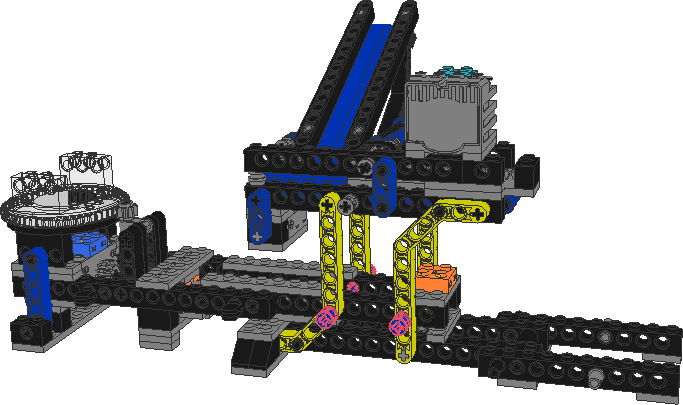

Step 03

Piece

Blue

Technic Pin Long with Stop Bush

4

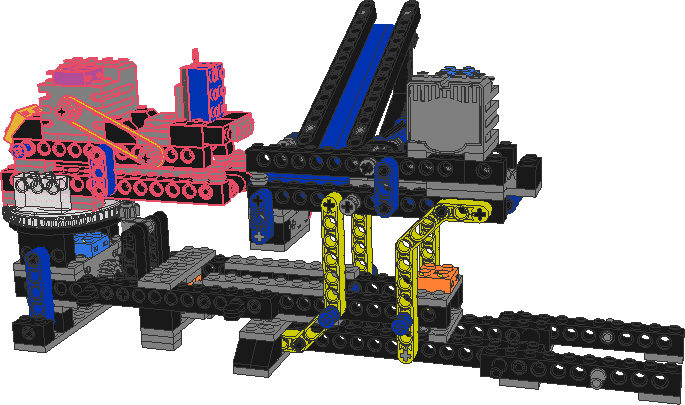

Step 04

Sub-assembly



Sorter rotor arm

1

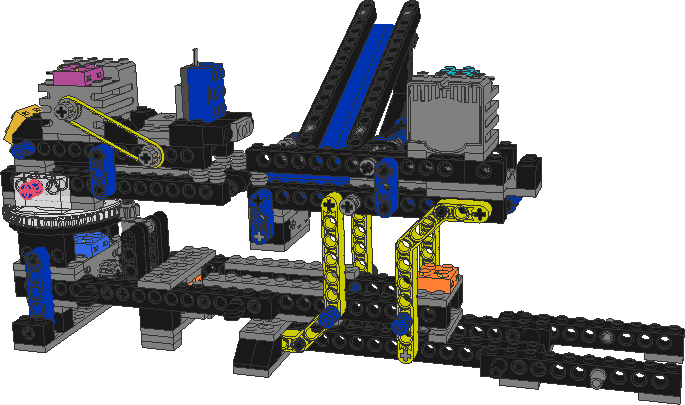

Step 05

Piece

Blue

Technic Pin Long with Stop Bush

2

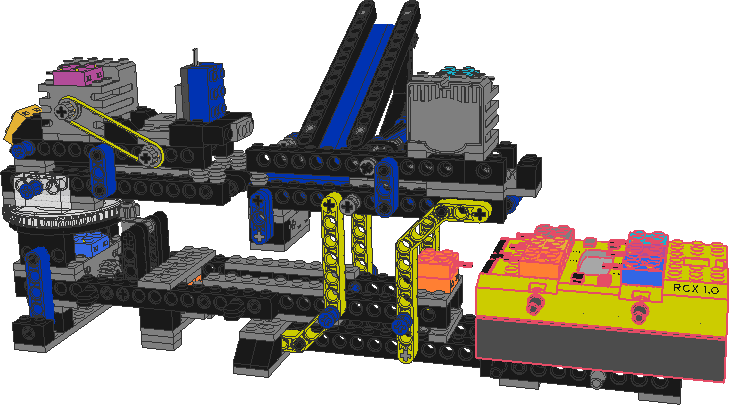

Step 06

Piece

Dark Gray

Yellow

Technic Pin 3/4

4

-

Electric Mindstorms RCX

-

1

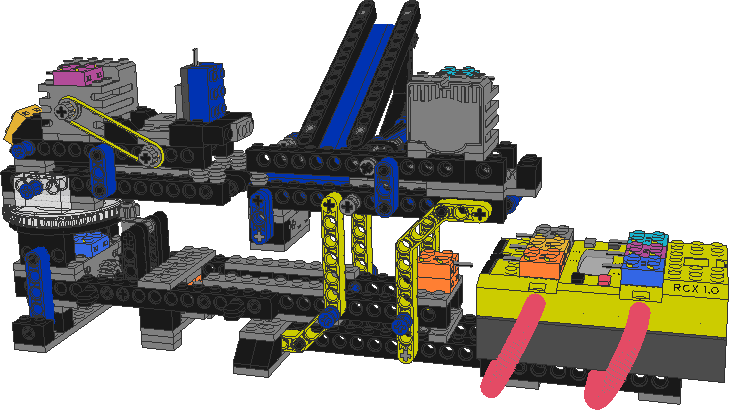

Step 07


Piece

Light Green

Technic Ribbed Hose L=9

4


Designed with LeoCAD
