     Brick sorter 3: Injector

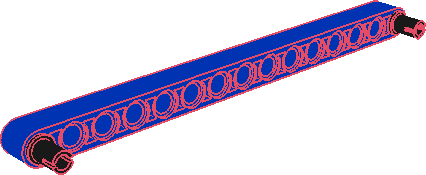

Step 01


Piece

Blue

Black

Technic Pin with Friction

-

2

Technic Liftarm 1 x 15 Straight

1

-

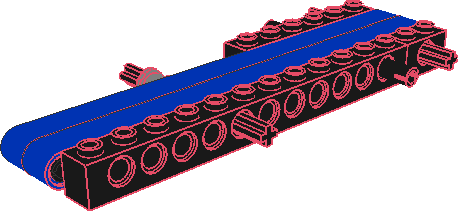

Step 02


Piece

Blue

Black

Light Gray

Technic Bush

-

-

1

Technic Brick 1 x 2 with Hole

-

1

-

Technic Axle 6

-

2

-

Technic Brick 1 x 6 with Holes

-

1

-

Technic Brick 1 x 12 with Holes

-

1

-

Technic Pin Long with Friction

-

2

-

Technic Liftarm 1 x 15 Straight

1

-

-

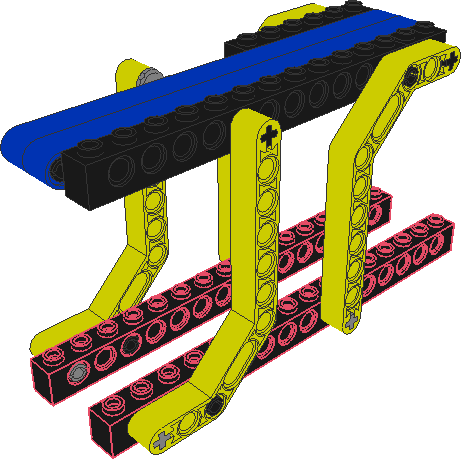

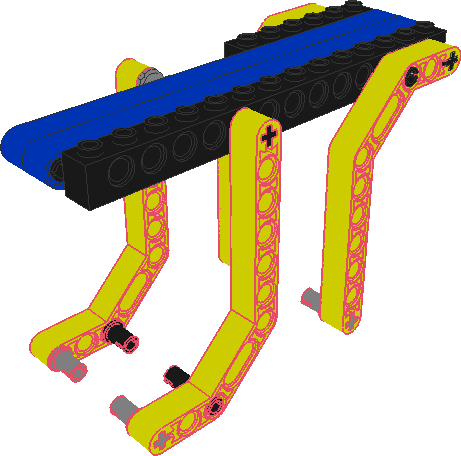

Step 03


Piece

Yellow

Black

Light Gray

Technic Liftarm 1 x 11.5 Double Bent

4

-

-

Technic Axle Pin

-

-

4

Technic Pin with Friction

-

2

-


Step 04


Piece

Black

Technic Brick 1 x 16 with Holes

2

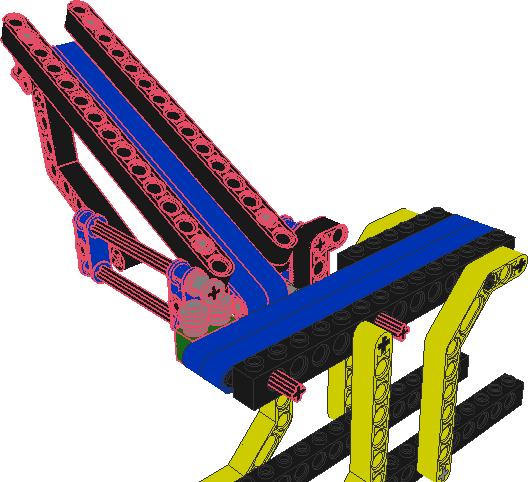

Step 05


Sub-assembly



Sorter chute

1

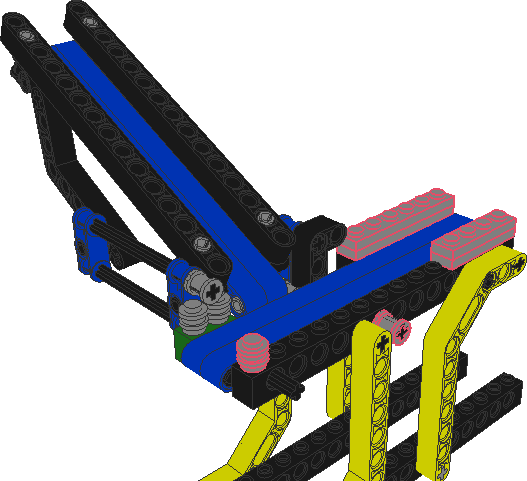

Step 06


Piece

Light Gray

Technic Bush

1

Plate 1 x 6

2

Plate 1 x 4

2

Plate 1 x 1 Round

2

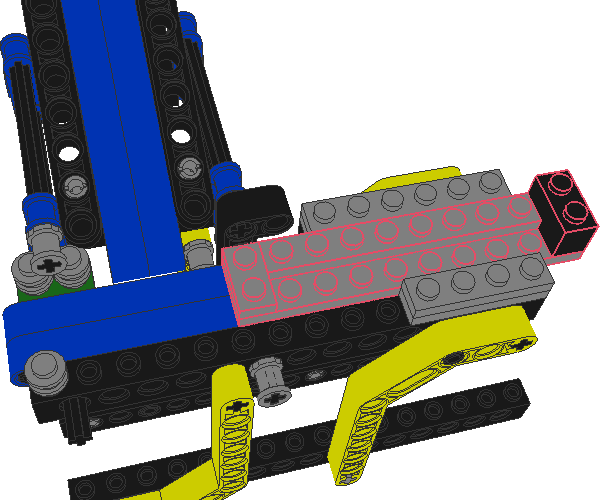

Step 07


Piece

Black

Light Gray

Brick 1 x 2

1

-

Plate 1 x 2

-

1

Plate 1 x 8

-

1

Plate 2 x 10

-

1


Step 08


Piece

Light Gray

Plate 1 x 1

1

Technic Gear Rack 1 x 4

2

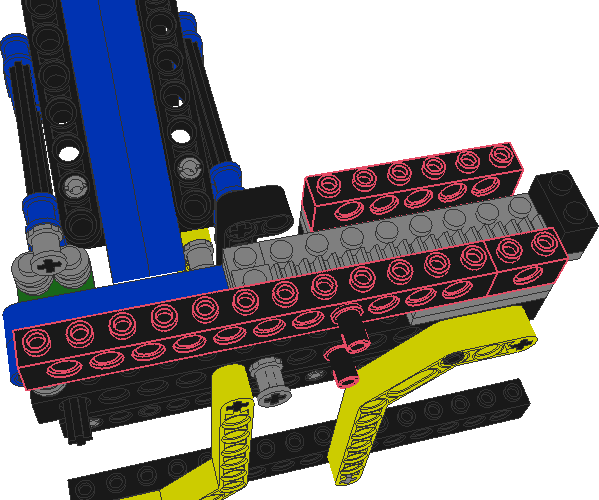

Step 09


Piece

Black

Technic Brick 1 x 2 with Hole

1

Technic Brick 1 x 6 with Holes

1

Technic Brick 1 x 12 with Holes

1

Technic Pin with Friction

2


Step 10


Piece

Blue

Black

Light Gray

Plate 2 x 2

-

-

1

Technic Gear 8 Tooth

-

-

1

Technic Axle 6

-

1

-

Plate 1 x 4

-

-

2

Technic Bush 1/2 Smooth

-

-

4

Technic Liftarm 1 x 3 Straight

1

-

-

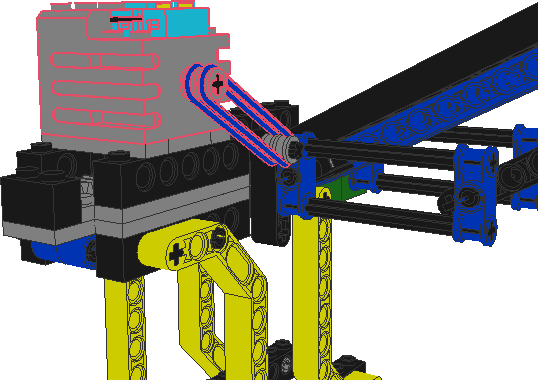

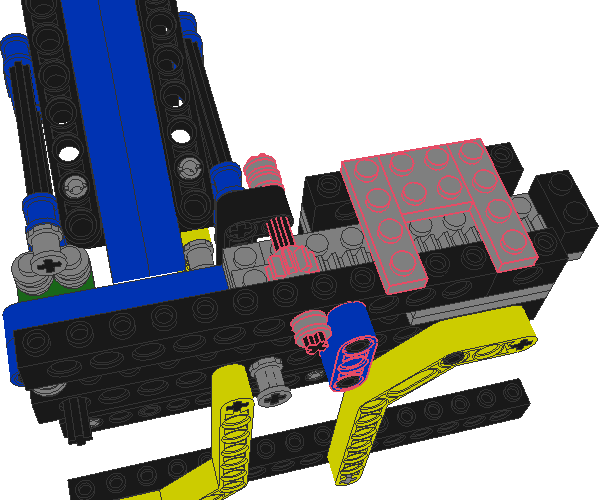

Step 11


Piece

Blue

Light Gray

Turquoise

Technic Bush 1/2 Smooth

-

2

-

Brick 2 x 2 x 2/3 Electric Wire End

-

-

1

Technic Mini-Motor 9v

-

1

-

Technic Rubber Belt

2

-

-

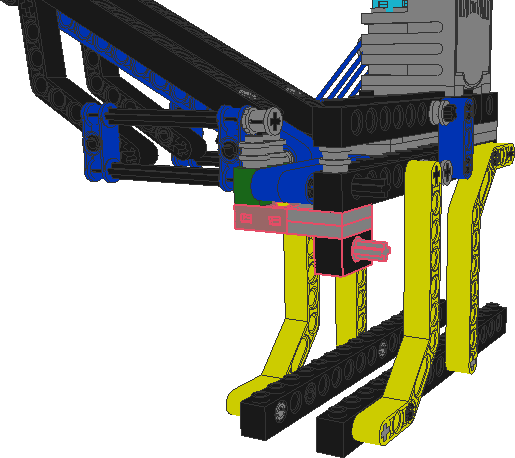

Step 12


Piece

Black

Light Gray

Light Brown

Plate 2 x 2

-

2

-

Technic Brick 1 x 2 with Hole

1

-

-

Technic Axle Pin

-

1

-

Brick 2 x 2 x 2/3 Electric Wire End

-

-

1

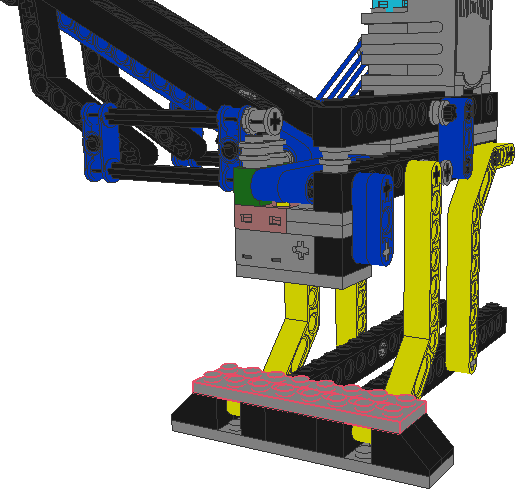

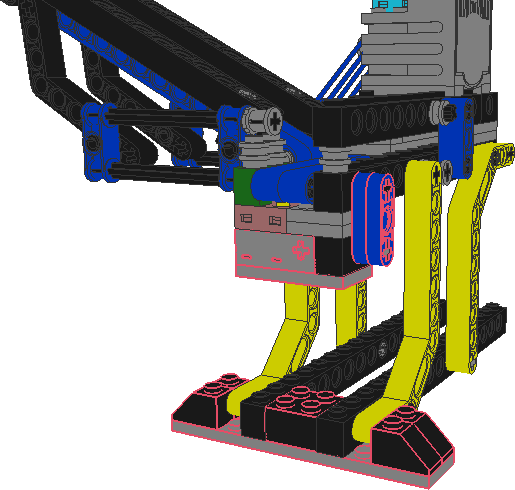

Step 13


Piece

Blue

Black

Light Gray

Brick 2 x 2

-

1

-

Plate 2 x 4

-

-

1

Slope Brick 45 2 x 1

-

4

-

Plate 2 x 10

-

-

1

Technic Liftarm 1 x 3

2

-

-

Electric Touch Sensor Brick 3 x 2 (Complete Assembly Shortcut)

-

-

1


Step 14


Piece

Light Gray

Technic Plate 2 x 8 with Holes

1


Step 15


Piece

Black

Light Gray

Plate 1 x 4

-

1

Plate 1 x 1 Round

-

2

Technic Pin Long with Friction

4

-

Technic Pin Joiner Round

1

-

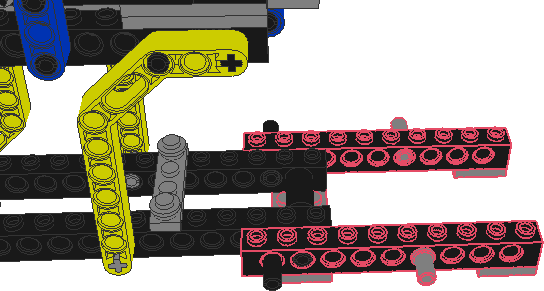

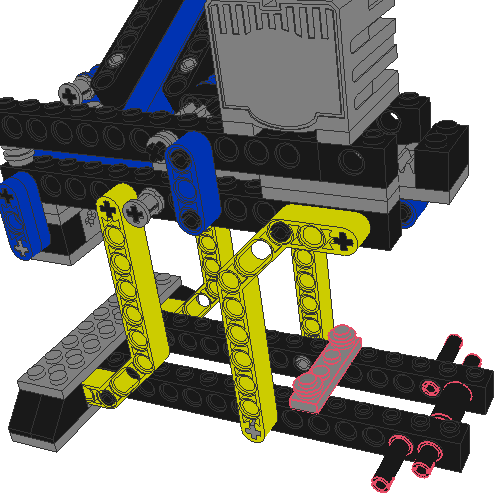

Step 16


Piece

Black

Light Gray

Technic Brick 1 x 10 with Holes

2

-

Plate 1 x 2

-

2

Technic Pin

-

2

Plate 2 x 6

-

1


Designed with LeoCAD
