     Brick sorter 3: Modifications of rotating arm for color sensor


Step 11


Piece

Light Gray

Plate 1 x 2

2

Technic Plate 2 x 4 with Holes

1

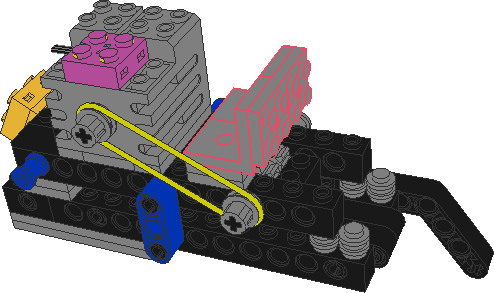

Step 12


Piece

Light Gray

Technic Plate 2 x 4 with Holes

1

Bracket 2 x 2 - 2 x 2

2

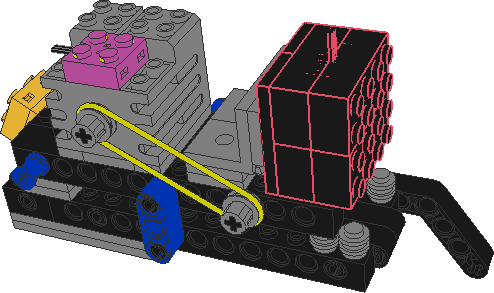

Step 13


Piece

Black

Color Sensor

1


Designed with LeoCAD
