     Brick sorter 3: Rotating arm with light sensor


Step 01


Piece

Black

Technic Pin with Friction

2

Technic Liftarm 1 x 15 Straight

1

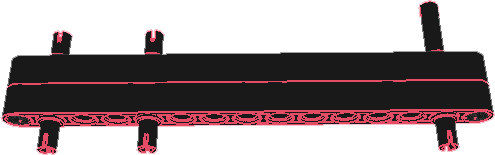

Step 02


Piece

Black

Technic Pin with Friction

5

Technic Pin Long with Friction

1

Technic Liftarm 1 x 15 Straight

1

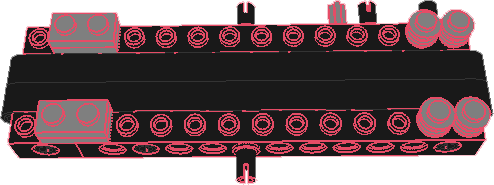

Step 03


Piece

Black

Light Gray

Plate 1 x 2

-

4

Technic Brick 1 x 2 with Hole

2

-

Technic Brick 1 x 12 with Holes

2

-

Technic Axle Pin

-

1

Plate 1 x 1 Round

-

8

Technic Pin with Friction

3

-

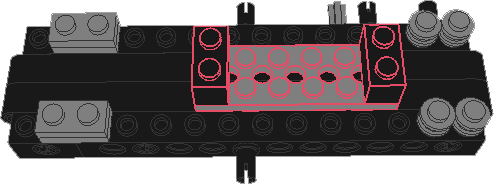

Step 04


Piece

Black

Light Gray

Brick 1 x 2

2

-

Technic Plate 2 x 6 with Holes

-

1

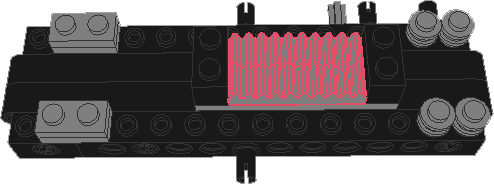

Step 05


Piece

Light Gray

Technic Gear Rack 1 x 4

2


Step 06


Piece

Black

Light Gray

Technic Micromotor Pulley

-

1

Technic Gear 8 Tooth

-

2

Technic Bush

-

1

Technic Axle 6

1

-

Technic Brick 1 x 12 with Holes

2

-

Technic Pin with Friction

2

-

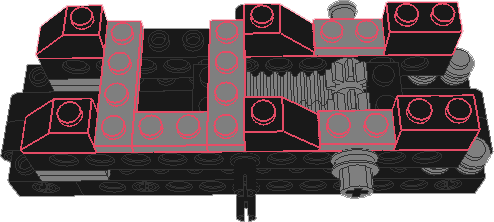

Step 07


Piece

Black

Light Gray

Brick 1 x 2

2

-

Plate 1 x 2

-

3

Slope Brick 45 2 x 1

4

-

Plate 1 x 4

-

2

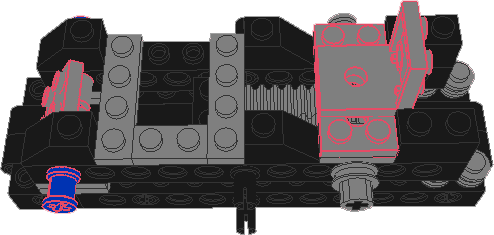

Step 08


Piece

Blue

Light Gray

Plate 2 x 2 with Holes

-

1

Technic Pin Long with Stop Bush

2

-

Technic Plate 2 x 4 with Holes

-

1

Bracket 2 x 2 - 2 x 2

-

1

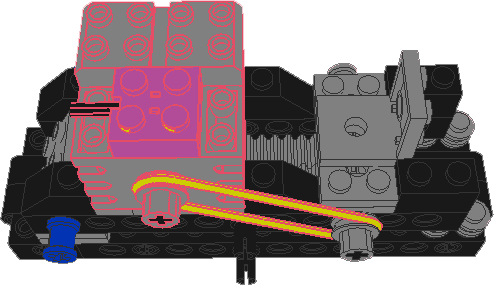

Step 09


Piece

Yellow

Pink

Light Gray

Technic Micromotor Pulley

-

-

1

Brick 2 x 2 x 2/3 Electric Wire End

-

1

-

Technic Mini-Motor 9v

-

-

1

Technic Rubber Belt

1

-

-


Step 10


Piece

Blue

Black

Gold

Light Gray

Electric Light Sensor (Complete Assembly Shortcut)

1

-

-

-

Brick 1 x 2

-

2

-

-

Plate 1 x 2

-

-

-

1

Brick 2 x 2 x 2/3 Electric Wire End

-

-

1

-

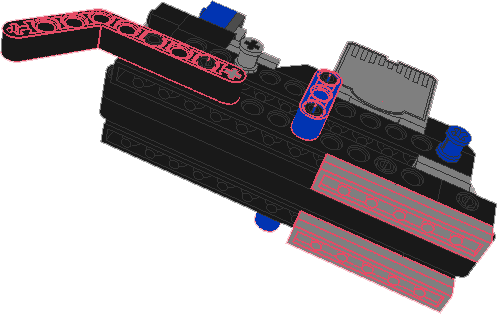

Step 11


Piece

Blue

Black

Light Gray

Plate 1 x 6

-

-

4

Technic Liftarm 1 x 9 Bent

-

1

-

Technic Liftarm 1 x 3 Straight

2

-

-


Designed with LeoCAD
