     Brick sorter 3: Rotating arm base

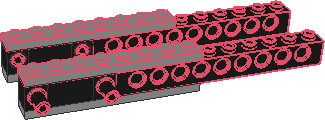

Step 01

Piece

Black

Light Gray

Brick 1 x 2

2

-

Plate 1 x 8

-

2

Technic Brick 1 x 1 with Hole

4

-

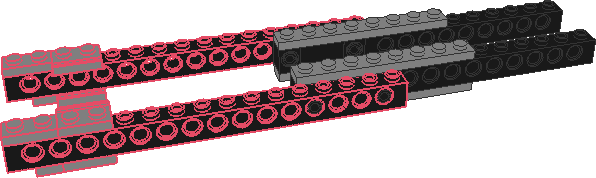

Step 02

Piece

Black

Light Gray

Technic Brick 1 x 10 with Holes

2

-

Plate 1 x 8

-

2

Technic Pin with Friction

4

-

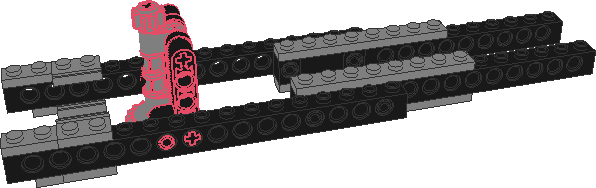

Step 03

Piece

Black

Light Gray

Plate 1 x 2

-

2

Plate 1 x 1

-

2

Plate 1 x 2 with Door Rail

-

4

Technic Brick 1 x 16 with Holes

2

-

Step 01

Step 02

Piece

Black

Light Gray

Technic Bush

-

2

Technic Axle 6

1

-

Technic Axle Joiner Perpendicular

-

2

Technic Gear 20 Tooth Bevel

-

1

Piece

Black

Light Gray

Technic Gear 8 Tooth

-

1

Technic Axle 4

1

-

Technic Axle 6

1

-

Technic Cam

-

1

Step 03

Step 04

Piece

Black

Technic Liftarm 1 x 4 Thin

2

Piece

Black

Technic Liftarm 2 x 4 L Shape

2

Technic Pin with Friction

2

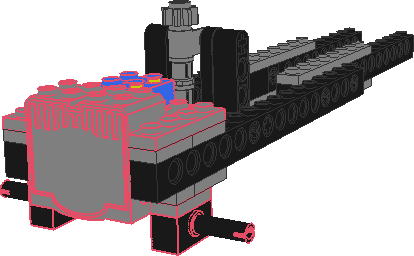

Step 04


Step 05

Piece

Light Blue

Black

Light Gray

Plate 1 x 2

-

-

2

Technic Brick 1 x 2 with Hole

-

2

-

Plate 1 x 4

-

-

2

Brick 2 x 2 x 2/3 Electric Wire End

1

-

-

Technic Pin Long with Friction

-

2

-

Technic Mini-Motor 9v

-

-

1

Technic Gear 12 Tooth Double Bevel

-

-

1

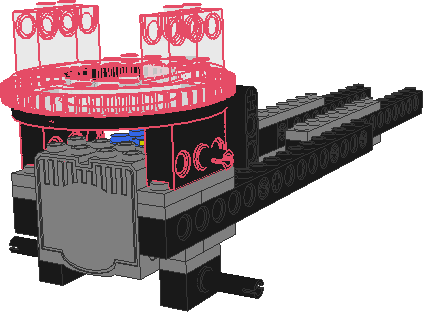

Step 06

Piece

Black

Clear White

Technic Turntable Top

-

1

Technic Turntable Base

1

-

Technic Pin with Friction

2

-

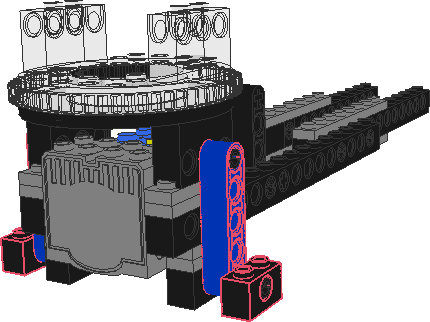

Step 07

Piece

Blue

Black

Technic Brick 1 x 2 with Hole

-

2

Technic Liftarm 1 x 5 Straight

2

-

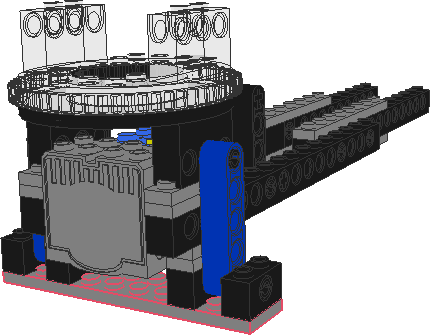

Step 08

Piece

Light Gray

Plate 2 x 10

1

Step 01

Step 02

Step 03

Piece

Light Gray

Plate 2 x 2 Corner

4

Piece

Light Gray

Technic Plate 2 x 6 with Holes

1

Electric Wire

-

Electric Touch Sensor

1

Piece

Black

Light Gray

Brick 1 x 2

2

-

Plate 2 x 2

-

1

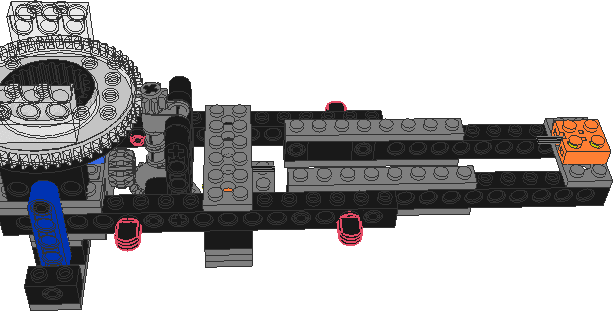

Step 09



Step 10

Piece

Orange

Light Gray

Technic Plate 2 x 6 with Holes

-

1

Technic Plate 2 x 4 with Holes

-

1

Brick 2 x 2 x 2/3 Electric Wire End

1

-

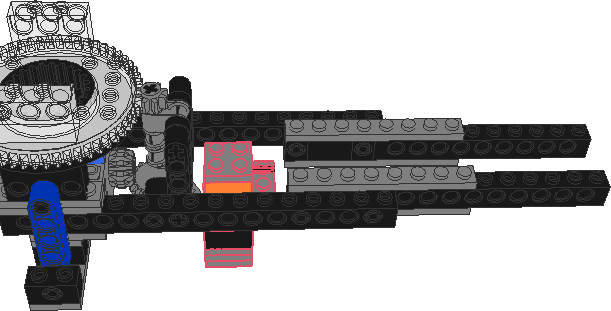

Step 11

Piece

Black

Arm Piece with Pin and 2 Fingers

4



Designed with LeoCAD
