    Brick Mixer : picker grip

    Step 01

    Piece

    Yellow

    Black

    Technic Brick 1 x 16 with Holes

    1

    -

    Tile 1 x 8

    1

    -

    Technic Pin with Friction

    -

    3


    Step 02

    Piece

    Black

    Light Gray

    Technic Liftarm 1 x 6

    -

    1

    Technic Pin with Friction

    2

    -


    Step 03

    Piece

    Black

    Light Gray

    Technic Triangle

    1

    -

    Technic Liftarm 1 x 6

    -

    1


    Step 04

    Piece

    Black

    Light Gray

    Technic Axle 4

    1

    -

    Technic Gear 16 Tooth

    -

    2

    Technic Axle 3

    1

    -


    Step 05

    Piece

    White

    Dark Gray

    Light Gray

    Technic Liftarm 3 x 3 L Shape

    2

    -

    -

    Technic Pin 3/4

    -

    1

    -

    Technic Bush 1/2 Smooth

    -

    -

    2

    Because the gears mesh with a slight offset, the grip is slightly asymetrical.
    For proper grip take care of this asymetry:



    Step 06

    Piece

    Black

    Light Gray

    Technic Triangle

    1

    -

    Technic Micromotor Pulley

    -

    1


    Step 07

    Piece

    Black

    Light Gray

    Technic Axle 5

    1

    -

    Technic Gear 8 Tooth

    -

    1

    Technic Gear 24 Tooth

    -

    1

    Technic Bush

    -

    1


    Step 08

    Piece

    Yellow

    Plate 2 x 4

    1

    Plate 1 x 2

    1


    Step 09

    Piece

    Yellow

    Plate 2 x 4

    1


    Step 10

    Piece

    Red

    Light Gray

    White

    Technic Micromotor Pulley

    -

    1

    -

    Technic Micromotor Base

    1

    -

    -

    Technic Micromotor

    1

    -

    -

    Technic Micromotor Top

    1

    -

    -

    Rubber Band

    -

    -

    1


    Step 11

    Piece

    Black

    Technic Axle 3

    1

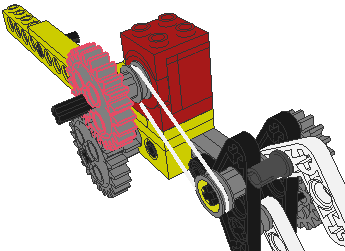

    Step 12

    Piece

    Light Gray

    Technic Gear 24 Tooth

    1


    Step 13

    Piece

    Red

    Plate 2 x 2

    1

    Technic Brick 1 x 2 with Hole

    2

    Plate 2 x 6

    1


     Designed with LeoCAD
