    Brick Mixer : conveyor


    Step 01

    Piece

    Black

    Light Gray

    Technic Brick 1 x 10 with Holes

    2

    -

    Plate 1 x 8

    -

    2

    Technic Brick 1 x 8 with Holes

    2

    -

    Technic Brick 1 x 2 with Hole

    2

    -

    Plate 1 x 10

    -

    2


    Step 02


    Piece

    Black

    Technic Brick 1 x 16 with Holes

    2

    Technic Brick 1 x 12 with Holes

    1


    Step 03

    Piece

    Yellow

    Light Gray

    Plate 1 x 8

    -

    2

    Plate 1 x 6

    -

    4

    Plate 1 x 4

    2

    -


    Step 04

    Piece

    White

    Light Gray

    Technic Brick 1 x 16 with Holes

    -

    2

    Technic Brick 1 x 2 with Hole

    4

    -

    Technic Brick 1 x 6 with Holes

    -

    2

    Technic Brick 1 x 12 with Holes

    -

    2


    Step 05

    Piece

    Black

    Light Gray

    Technic Gear 8 Tooth

    -

    4

    Technic Gear 24 Tooth

    -

    3

    Technic Bush

    -

    5

    Technic Axle 6

    1

    -

    Technic Axle 8

    3

    -

    Technic Bush 1/2 Smooth

    -

    2


    Step 06

    Piece

    Dark Gray

    Black

    Light Gray

    Technic Gear 8 Tooth

    -

    -

    1

    Technic Gear 24 Tooth

    -

    -

    1

    Technic Bush

    -

    -

    1

    Technic Axle 4

    -

    1

    -

    Technic Axle 8

    -

    2

    -

    Brick 2 x 2 Round

    -

    2

    -

    Technic Bush 1/2 Smooth

    -

    -

    2

    Technic Differential New

    1

    -

    -

    Technic Gear 12 Tooth Bevel

    -

    -

    3


    Step 07

    Piece

    Black

    Light Gray

    Technic Gear 24 Tooth

    -

    1

    Technic Bush

    -

    4

    Technic Axle 6

    2

    -

    Technic Bush 1/2 Smooth

    -

    2


    Step 08

    Piece

    Black

    Light Gray

    Technic Gear 8 Tooth

    -

    1

    Technic Link Tread

    62

    -


    Step 09

    Piece

    Light Gray

    Plate 2 x 2 Corner

    2

    Plate 1 x 2

    2


    Step 10

    Piece

    Light Gray

    Technic Brick 1 x 6 with Holes

    1


    Step 11

    Piece

    Black

    Light Gray

    Plate 2 x 4

    -

    1

    Plate 1 x 2

    -

    2

    Plate 1 x 4

    2

    -


    Step 12

    Piece

    Black

    Light Gray

    Technic Gear 8 Tooth

    -

    1

    Brick 2 x 2 x 2/3 Electric Wire End

    1

    -

    Technic Mini-Motor 9v

    -

    1

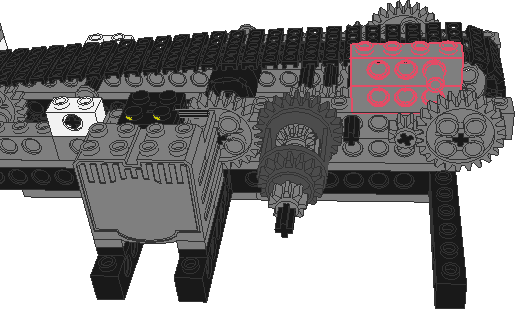

    Step 13

    Piece

    Light Gray

    Technic Pin

    1

    Technic Brick 1 x 4 with Holes

    2


    Step 14

    Piece

    Light Gray

    Plate 2 x 4

    1

    Technic Axle Joiner Perpendicular

    1


    Collector

    Step 01

    Piece

    Red

    Plate 4 x 8

    1

    Plate 6 x 8

    1


    Step 02

    Piece

    Red

    Technic Brick 1 x 8 with Holes

    4


    Step 03

    Piece

    Red

    Black

    Technic Pin with Friction

    -

    3

    Plate 1 x 10

    2

    -


    Designed with LeoCAD
