    Brick Mixer : brick feed parts

    Chute (build 4, different colors)



    Step 01

    Piece

    Yellow

    Black

    Technic Brick 1 x 4 with Holes

    2

    -

    Technic Brick 1 x 12 with Holes

    1

    -

    Technic Pin with Friction

    -

    2


    Step 02

    Piece

    Yellow

    Black

    Technic Brick 1 x 16 with Holes

    1

    -

    Technic Pin with Friction

    -

    2


    Step 03

    Piece

    Yellow

    Light Gray

    Technic Brick 1 x 4 with Holes

    2

    -

    Technic Brick 1 x 12 with Holes

    1

    -

    Technic Pin 1/2

    -

    1


    Frame 1 (build 2)

    Step 01

    Piece

    Yellow

    Black

    Plate 1 x 2

    2

    -

    Technic Brick 1 x 2 with Hole

    1

    -

    Technic Brick 1 x 6 with Holes

    1

    -

    Technic Brick 1 x 12 with Holes

    1

    -

    Technic Pin with Friction

    -

    3

    Technic Pin Long with Friction

    -

    2


    Step 02

    Piece

    Yellow

    Plate 1 x 4

    1

    Technic Brick 1 x 12 with Holes

    2



    Frame 2

    Step 01

    Piece

    Yellow

    Black

    Plate 1 x 2

    2

    -

    Technic Brick 1 x 16 with Holes

    1

    -

    Technic Brick 1 x 2 with Hole

    1

    -

    Technic Brick 1 x 6 with Holes

    1

    -

    Technic Pin with Friction

    -

    3

    Technic Pin Long with Friction

    -

    2


    Step 02

    Piece

    Yellow

    Plate 1 x 4

    1

    Technic Brick 1 x 12 with Holes

    2

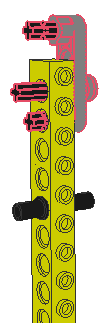

    Step 03

    Piece

    Black

    Light Gray

    Technic Liftarm 1 x 4

    -

    1

    Technic Bush 1/2 Smooth

    -

    1

    Technic Axle 3

    1

    -

    Technic Axle 2 Notched

    2

    -


    Step 04

    Piece

    Light Gray

    Technic Liftarm 1 x 4

    1

    Technic Bush 1/2 Smooth

    1


    Designed with LeoCAD
