    Brick Mixer : picker base

    Step 01

    Piece

    Black

    Technic Brick 1 x 8 with Holes

    1

    Technic Pin

    1


    Step 02

    Piece

    Black

    Plate 2 x 8

    1

    Technic Brick 1 x 8 with Holes

    1


    Step 03

    Piece

    Black

    Light Gray

    Plate 2 x 2

    -

    1

    Technic Bush

    -

    4

    Technic Axle 8

    1

    -

    Electric Touch Sensor Brick 3 x 2 (Complete Assembly Shortcut)

    -

    1


    Step 04

    Piece

    Black

    Light Gray

    Plate 2 x 2

    -

    2

    Plate 1 x 2

    -

    2

    Technic Brick 1 x 16 with Holes

    2

    -

    Brick 2 x 2 x 2/3 Electric Wire End

    1

    -


    Step 05

    Piece

    Black

    Light Gray

    Plate 1 x 2 with Door Rail

    -

    2

    Plate 1 x 6

    -

    1

    Brick 2 x 2 x 2/3 Electric Wire End

    1

    -

    Technic Mini-Motor 9v

    -

    1


    Step 06

    Piece

    Black

    Light Gray

    Plate 2 x 2 Corner

    -

    2

    Technic Brick 1 x 10 with Holes

    2

    -

    Plate 1 x 2 with Door Rail

    -

    2

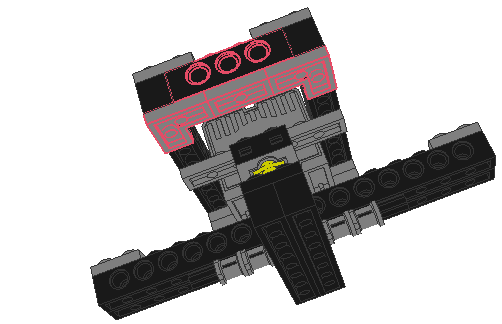

    Step 07

    Piece

    Black

    Light Gray

    Plate 2 x 2 Corner

    -

    2

    Plate 1 x 2

    -

    1

    Technic Brick 1 x 4 with Holes

    1

    -


    Step 08

    Piece

    Black

    Light Gray

    Technic Brick 1 x 6 with Holes

    1

    -

    Technic Axle Pin

    -

    2

    Plate 2 x 6

    -

    1


    Step 09

    Piece

    Light Gray

    Technic Liftarm 1 x 3

    1

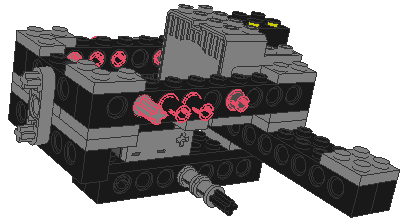

    Step 10

    Piece

    Dark Gray

    Black

    Light Gray

    Technic Pin 3/4

    2

    -

    -

    Technic Axle Pin

    -

    -

    2

    Technic Pin with Friction

    -

    4

    -


    Step 11

    Piece

    Light Gray

    Technic Liftarm 1 x 5

    2

    Technic Bush 1/2 Smooth

    2


    Step 12

    Piece

    Black

    Light Gray

    Technic Bush

    -

    2

    Technic Axle 6

    2

    -

    Technic Axle Pin

    -

    3


    Step 13

    Piece

    White

    Black

    Light Gray

    Technic Gear 8 Tooth

    -

    -

    1

    Technic Gear 24 Tooth

    -

    -

    3

    Technic Gear 40 Tooth

    -

    -

    2

    Tyre 49.6 x 28 VR

    -

    2

    -

    Wheel 49.6 x 28 VR

    2

    -

    -


     Designed with LeoCAD
