    PanoBot 2 : RCX

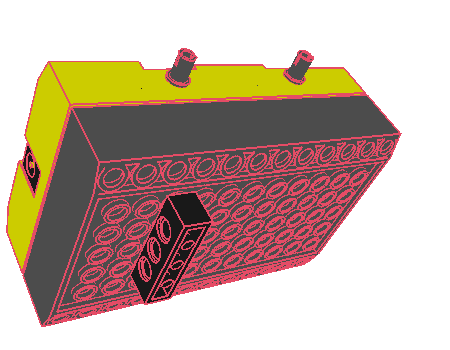

Step 01

Piece

Yellow

Dark Gray

Black

Technic Pin 3/4

-

2

-

Technic Brick 1 x 4 with Holes

-

-

1

Electric Mindstorms RCX (Complete Assembly Shortcut)

1

-

-


Step 02

Piece

Dark Gray

Black

Technic Brick 1 x 10 with Holes

-

1

Technic Pin 3/4

2

-

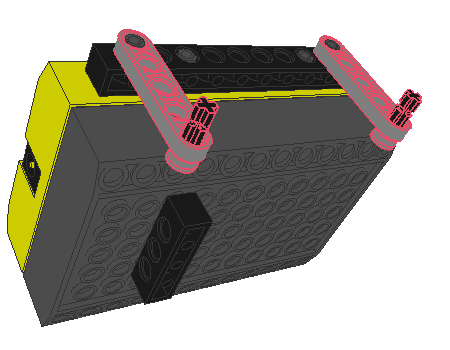

Step 03

Piece

Black

Light Gray

Technic Liftarm 1 x 5

-

2

Technic Bush 1/2 Smooth

-

2

Technic Axle 2 Notched

2

-


Step 04

Piece

Black

Light Gray

Technic Pin with Friction

2

-

Technic Axle Joiner Perpendicular

-

2


Designed with LeoCAD
