    PanoBot 2 : Light sensor and encoder

 Step 01

Piece

Black

Light Gray

Technic Brick 1 x 2 with Hole

1

-

Technic Plate 2 x 4 with Holes

-

1

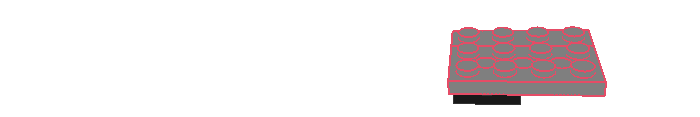

Step 02

Piece

Light Gray

Technic Plate 2 x 4 with Holes

1

Plate 1 x 4

1


Step 03

Piece

Blue

Electric Light Sensor (Complete Assembly Shortcut)

1


Step 04

Piece

Black

Light Gray

Plate 1 x 2

-

2

Plate 1 x 1

-

3

Plate 1 x 2 with Door Rail

-

2

Technic Brick 1 x 16 with Holes

1

-

Technic Pin with Friction

2

-


Step 05

Piece

Yellow

Technic Liftarm 1 x 11.5 Double Bent

1

Plate 1 x 3

2


Step 06

Piece

Black

Light Gray

Plate 1 x 1

-

2

Technic Brick 1 x 2 with Hole

1

-

Slope Brick 33 3 x 2 Inverted

1

-


Step 07

Piece

Light Gray

Plate 1 x 2

1

Plate 1 x 4

1



Encoder

Step 01

Piece

Black

Light Gray

Technic Bush

-

1

Technic Axle 6

1

-

Brick 2 x 2 Round

2

-

Step 02

Piece

Taped black & white piece of paper


Designed with LeoCAD
