    Barrel Collecting Robot: Chassis frames

      Frame 1



Step 01

Piece

Light Gray

Plate 1 x 1

2

Plate 1 x 2 with Door Rail

2

Plate 1 x 10

2


Step 02

Piece

Black

Light Gray

Plate 1 x 6

-

2

Technic Brick 1 x 12 with Holes

2

-

Technic Axle Pin

-

2


Step 03

Piece

Yellow

Black

Light Gray

Plate 2 x 4

2

-

-

Plate 1 x 1

-

-

2

Plate 1 x 2 with Door Rail

-

-

2

Technic Pin with Friction

-

2

-

Plate 1 x 10

-

-

1


Step 04

Piece

Yellow

Black

Light Gray

Plate 2 x 2 Corner

-

-

2

Plate 2 x 4

2

-

-

Technic Brick 1 x 4 with Holes

-

1

-




      Frame 2


Step 01

Piece

Dark Gray

Black

Clear White

Light Gray

Technic Pin 3/4

2

-

-

-

Technic Gear 24 Tooth

-

-

-

1

Technic Brick 1 x 2 with Hole

-

1

-

-

Technic Axle 6

-

1

-

-

Plate 1 x 4

-

-

-

2

Technic Axle 10

-

1

-

-

Technic Gear 16 Tooth

-

-

-

1

Technic Bush 1/2 Smooth

-

-

-

2

Technic Worm Screw

-

1

-

-

Technic Gearbox 2 x 4 x 3 & 1/3

-

-

1

-


Step 02


Piece

Light Gray

Technic Bush

1

Technic Bush 1/2 Smooth

1


Step 03

Piece

Black

Clear Red

Light Gray

Technic Bush

-

-

1

Technic Brick 1 x 6 with Holes

2

-

-

Technic Bush 1/2 Smooth

-

-

1

Technic Pin with Friction

3

-

-

Technic Pin Joiner Round

1

-

-

Technic Liftarm 1 x 9 Bent

-

1

-

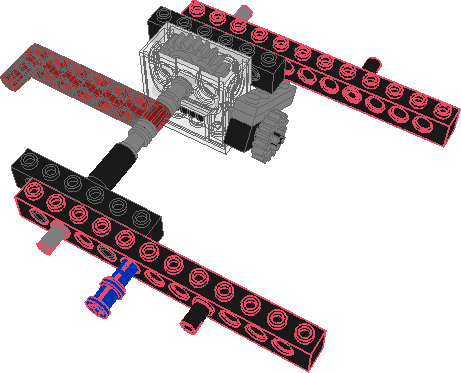

Step 04

Piece

Blue

Black

Light Gray

Technic Pin Long with Stop Bush

1

-

-

Technic Pin

-

-

2

Technic Brick 1 x 12 with Holes

-

2

-

Technic Pin with Friction

-

2

-


Step 05

Piece

Yellow

Light Gray

Plate 2 x 4

2

-

Plate 1 x 2

-

2

Plate 1 x 2 with Door Rail

-

2


Step 06

Piece

Black

Light Gray

Plate 2 x 2

-

1

Technic Gear 16 Tooth

-

1

Electric Wire

1

-

Technic Mini-Motor 9v

-

1


Designed with LeoCAD
