    Sky Shooter: Shutter Release



Step 01

Piece

Black

Light Gray

Plate 2 x 2 with Holes

-

1

Plate 2 x 2

-

1

Brick 2 x 2 x 2/3 Electric Wire End

1

-

Electric Touch Sensor Brick 3 x 2 (Complete Assembly Shortcut)

-

1


Step 02

Piece

Black

Light Gray

Brick 1 x 2

2

-

Plate 2 x 2

-

1

Technic Axle 5

1

-

Technic Bush

-

1

Technic Brick 1 x 2 with Hole

1

-

Technic Brick 1 x 4 with Holes

1

-

Technic Pin with Friction

1

-


Step 03

Piece

Black

Light Gray

Plate 1 x 2

-

2

Plate 1 x 2 with Door Rail

-

2

Technic Brick 1 x 12 with Holes

1

-

Technic Bush 1/2 Smooth

-

1

Technic Axle 3

1

-


Step 04

Piece

Blue

Black

Light Gray

Technic Angle Connector #2

1

-

-

Technic Axle Pin

-

-

1

Technic Bush 1/2 Smooth

-

-

1

Technic Axle 3

-

1

-

Technic Liftarm 1 x 3

-

-

2


Step 05

Piece

Black

Light Gray

Technic Axle 6

1

-

Technic Gear 16 Tooth

-

1

Technic Bush 1/2 Smooth

-

2

Technic Worm Screw

1

-

Technic Axle Joiner

-

1


Step 06

Piece

Black

Light Gray

Technic Liftarm 1 x 4

-

1

Technic Axle 8

1

-

Technic Bush 1/2 Smooth

-

1

Technic Pole Reverser Handle

-

1

Technic Axle 2 Notched

1

-


Step 07


Piece

Black

Light Gray

Technic Liftarm 1 x 4

-

1

Technic Liftarm 3 x 3 L Shape

-

1

Technic Gear 24 Tooth

-

1

Technic Bush

-

2

Technic Bush 1/2 Smooth

-

1

Technic Pole Reverser Handle

-

1

Technic Axle 2 Notched

1

-


Step 08

Piece

Black

Light Gray

Technic Brick 1 x 10 with Holes

1

-

Plate 1 x 2

-

4

Plate 1 x 2 with Door Rail

-

2

Plate 1 x 4

-

1

Technic Bush 1/2 Smooth

-

1


Step 09

Piece

Blue

Black

Light Gray

Plate 2 x 2

2

-

-

Brick 2 x 2 x 2/3 Electric Wire End

-

1

-

Technic Mini-Motor 9v

-

-

1

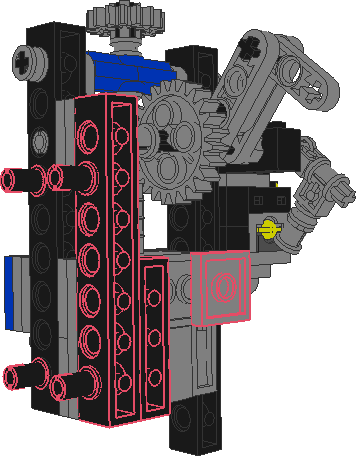

Step 10


Piece

Black

Light Gray

Plate 2 x 2

-

1

Technic Brick 1 x 8 with Holes

1

-

Technic Brick 1 x 4 with Holes

1

-

Technic Pin with Friction

3

-

Technic Pin Long with Friction

1

-

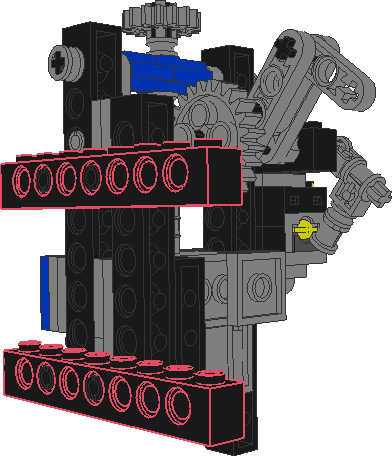

Step 11

Piece

Black

Technic Brick 1 x 8 with Holes

2


Designed with LeoCAD
