    Sky Shooter: Arm and Clamp

      Arm

Step 01

Piece

Green

Blue

Black

Plate 3 x 6 without Corners

2

-

-

Plate 2 x 2

1

2

-

Tile 1 x 2 with Hinge

-

-

2

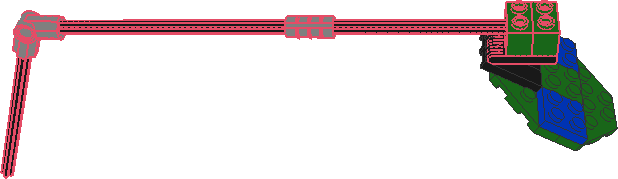

Step 02

Piece

Green

Black

Light Gray

Technic Angle Connector #5

-

-

1

Technic Brick 1 x 2 with Axlehole

2

-

-

Technic Axle 12

-

1

-

Technic Axle 10

-

2

-

Plate 1 x 2 with 3 Fingers Hinge

-

2

-

Technic Axle Joiner

-

-

1



      Clamp

Step 01

Piece

Blue

Yellow

Light Gray

Technic Liftarm 1 x 11.5 Double Bent

-

1

-

Technic Pin Long with Stop Bush

2

-

-

Technic Axle Pin

-

-

1

Technic Pin 3L Double

-

1

-


Step 02

Piece

Yellow

Dark Gray

Black

Technic Liftarm 1 x 11.5 Double Bent

1

-

-

Wheel Centre Large

1

-

-

Tyre Small

-

-

1

Technic Axle 3 with Stud

-

2

-

Technic Axle 2 Notched

-

-

1


Designed with LeoCAD
