    Laser Sensor Test Vehicle: Final assembly

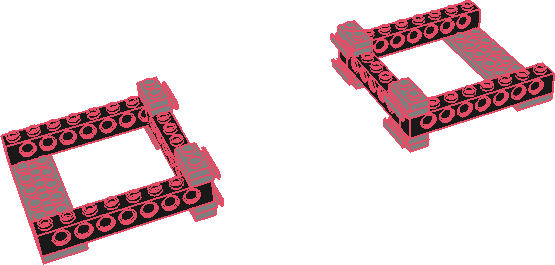

Step 01

Piece

Black

Light Gray

Plate 1 x 2

-

8

Plate 1 x 2 with Door Rail

-

8

Technic Brick 1 x 8 with Holes

4

-

Technic Plate 2 x 8 with Holes

-

2

Technic Brick 1 x 6 with Holes

2

-


Step 02

Piece

Black

Light Gray

Plate 2 x 2

-

4

Technic Plate 2 x 6 with Holes

-

2

Technic Gear 8 Tooth

-

2

Technic Bush

-

2

Technic Axle 4

2

-

Technic Brick 1 x 6 with Holes

2

-

Technic Bush 1/2 Smooth

-

2

Brick 2 x 2 x 2/3 Electric Wire End

2

-

Technic Mini-Motor 9v

-

2


Step 03

Piece



Wheels subassembly

1


Step 04

Piece

Light Gray

Technic Bush

2

Technic Plate 2 x 8 with Holes

2

Technic Bush 1/2 Smooth

2

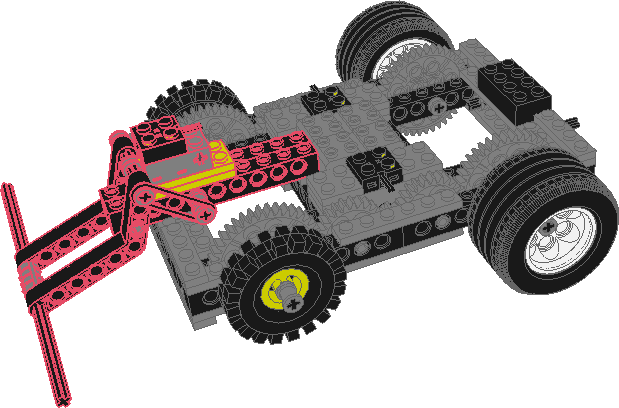

Step 05

Piece

Black

Light Gray

Brick 2 x 4

1

-

Plate 1 x 2

-

1

Plate 1 x 6

-

4

Plate 1 x 4

-

4


Step 06

Piece



Bumper Subassembly

1


Step 07

Piece

Yellow

Black

Light Gray

Plate 2 x 2 with Holes

-

-

1

Technic Brick 1 x 2 with Hole

-

2

-

Technic Pin with Friction

-

2

-

Brick 2 x 2 x 2/3 Electric Wire End

-

3

-

Electric Mindstorms RCX (Complete Assembly Shortcut)

1

-

-

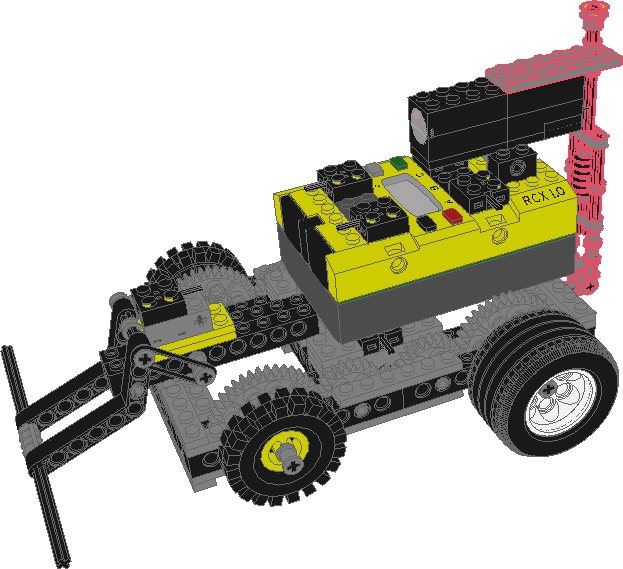

Step 08

Piece

Black

Laser Target Finder Sensor

1


Step 09

Piece



Leveller Subassembly

1


Designed with LeoCAD
